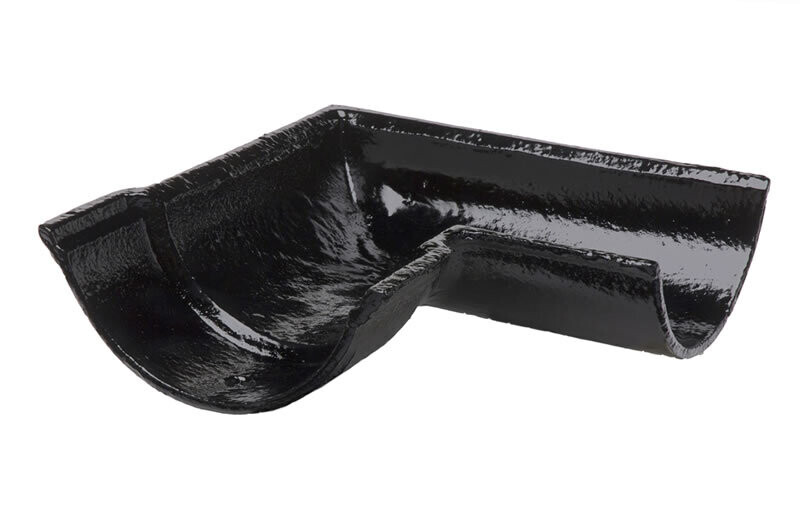

The 90-degree angle forms part of our Beaded Half Round cast iron gutters range. With a socket on one side and a plain end on the other, this fitting is available in either a left or right-hand orientation.
Sizes for these angles are:
4″ = 180mm x 182mm 4.5″ = 199mm x 200mm 5″ = 210mm x 212mm 6″ = 228mm x 228mm
The cast iron Beaded Half Round 90 degree angle is supplied in either a grey primer or gloss black painted finish.
Cast iron gutters and pipes enhance the appearance of both traditional and contemporary projects whilst providing significant benefits over other rainwater systems. Cast iron guttering, pipes and hopper heads offer unrivalled strength, durability, low operational noise levels, environmental benefits and a lifespan that makes the installation of these products a once-in-a-generation event.
A gutter is a cast iron trough with a socket at one end and a spigot at the other for making internal and external connections to other gutter lengths and fittings, for example, outlets, that connect to a rainwater pipe. Gutters collect rainfall as it runs off the roof and allows the water to drain away from the fabric of the building into the drain pipes and then the drains. Cast iron gutters should be straight as if badly warped this makes installation problematic. As with cast iron rainwater pipes, they should have an even and consistent finish that will allow for the unobstructed flow of rainwater. Both our cast iron plain half-round and beaded half-round gutters are cast centrifugally to ensure that the gutters are straight and have an even metal thickness.
More Details
You might be considering other materials for your project but did you realise that there are a number of significant benefits of choosing a cast iron rainwater system that go beyond a traditional appearance.
Cast iron has stood the test of time and is ideally suited to both rainwater and soil drainage systems. It offers many benefits to not only yourself but also your contractor; these include:
Strength & Durability- cast iron pipe systems can be one of the most durable elements of a building and is able to withstand the rigours of on-site handling, mechanical de-blocking and most acts of vandalism. Cast iron will not deflect under loads which makes it the ideal choice for below ground drainage, as special bedding and over-excavation of trenches are not required to withstand damage from ground movement. The renowned strength of a cast iron rainwater system also benefits by securing it against heavy snow falls, high winds and the weight of ladders.
Fire Resistant- cast iron is non-combustible and in the event of a fire will not contribute to spread or burn away to allow the transfer of flames, emit toxic fumes or melt and drip.
