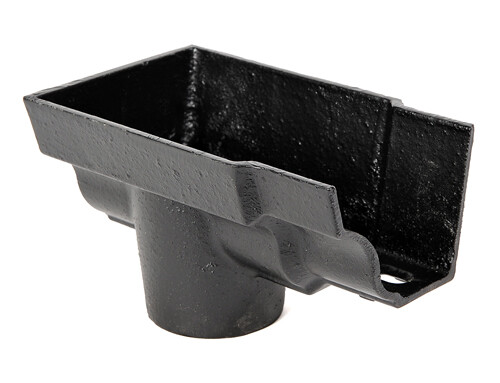

The cast iron G46 Moulded drop end outlet is designed for use at the end of a run of guttering. The external outlet fits onto the gutter joint on the right-hand side whereas the internal drop end locates inside the guttering on the left. For further details concerning sockets and handing of items, please click on the ‘Socket Information’ button.
The drop end outlet forms part of our G46 Moulded cast iron gutters range and is available as either an internal or external fitting. The external outlet fits onto the gutter joint on the right-hand side whereas the internal drop end locates inside the guttering on the left. This fitting is for use at the end of a run of guttering. For outlet positions in the middle of a run, the G46 Moulded nozzle outlet should be used.
The G46 Moulded drop end outlet is supplied as internal and external rather than left or right hand.
Sizes for the external drop end outlet are:
4″x3" = 170mm with the centre of the outlet at 65mm
5″x4" = 172mm with the centre of the outlet at 65mm
Sizes for the internal dropend outlet are:
4″x3" = 178mm with the centre of the outlet at 65mm
5″x4" = 181mm with the centre of the outlet at 65mm
The cast iron G46 Moulded drop end outlet is supplied in either a grey primer or gloss black painted finish.
Whilst more commonly used on Heritage projects the cast iron G46 Moulded profile can enhance the appearance of both traditional and contemporary projects whilst providing significant benefits over other rainwater systems. Cast iron guttering, pipes and hopper heads offer unrivalled strength, durability, low operational noise levels, environmental benefits and a lifespan that makes the installation of these products a once-in-a-generation event.
