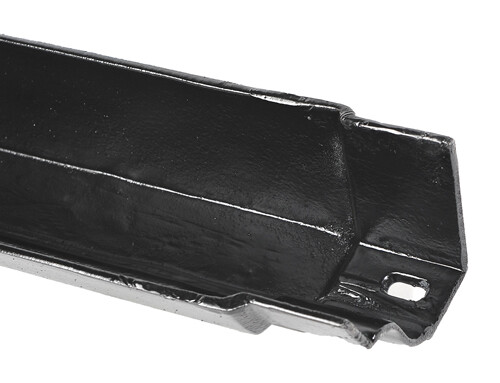

The G46 Moulded profile of cast iron guttering is available in 2 sizes and is supplied in either a grey primer or gloss black painted finish. Lengths are supplied in 1829mm (6′) lengths and have a right-hand internal joint (when facing front) to allow continuous jointing.
Our G46 Moulded gutter profile is a bigger type of Ogee guttering which has a flat base and a more pronounced shape to the face. Being larger than the common cast iron ogee guttering the two sizes offer an increased flow rate for projects with bigger roof areas or steeper roof pitches. This is a more traditional cast iron gutter profile in the Ogee style but the large capacity makes it suitable for both conservation and modern projects. The G46 Moulded profile has a right-hand internal joint.
Our cast iron G46 Moulded guttering profile is offered in the following depths:
4″x3" = 75mm
5"x4" = 100mm
Our G46 Moulded cast iron gutter profile is available in 2 widths and offers the following flow rates:
4″x3" = has a 0.76-litre capacity
5"x4" – has a 1.56-litre capacity
It is important to note that the G46 Moulded profile has a right-hand internal joint. Unlike the common Ogee and Notts Ogee profiles, which have a larger left-hand socket, the G46 Moulded profile has a thinner right-hand internal joint. This means that anything fitting to the left will be internal and anything right external. Should you cut off the socket leaving you with a plain end on both sides you will still require internal fittings but you will need to purchase the union clip to attach them. For further details concerning sockets and handing of items, please click on the ‘Socket Information’ button.
Cast iron guttering, pipes and hopper heads offer unrivalled strength, durability, low operational noise levels, environmental benefits and a lifespan that makes the installation of these products a once-in-a-generation event.
Metal & Glass cast iron rainwater and soil systems are the logical choices for listed properties and conservation areas as the aesthetic appeal of cast iron satisfies all the requirements of heritage architecture.
Our standard range of cast iron gutter profiles includes Plain Half Round, Beaded Half Round, Ogee, Notts Ogee, G46 Moulded, H16 Moulded and Plain Deep Half Round. In addition to these cast iron guttering profiles, our range can be complemented with compatible products from the extensive sand cast rainwater range or alternatively unique bespoke products can be supplied to your design.
Supported by an extensive range of fittings and brackets, the G46 Moulded profile of cast iron guttering offers everything you might need for your project whether traditional or contemporary.
This is a genuine cast iron rainwater system supplied by a well-established UK foundry. Offering significantly more benefits than the plastic cast iron effect, traditional cast iron products are proven to be versatile, durable, and reliable and these sustainable products continue to meet the changing demands of modern industry.
For help and advice with your cast iron rainwater system speak to one of our knowledgeable team.
