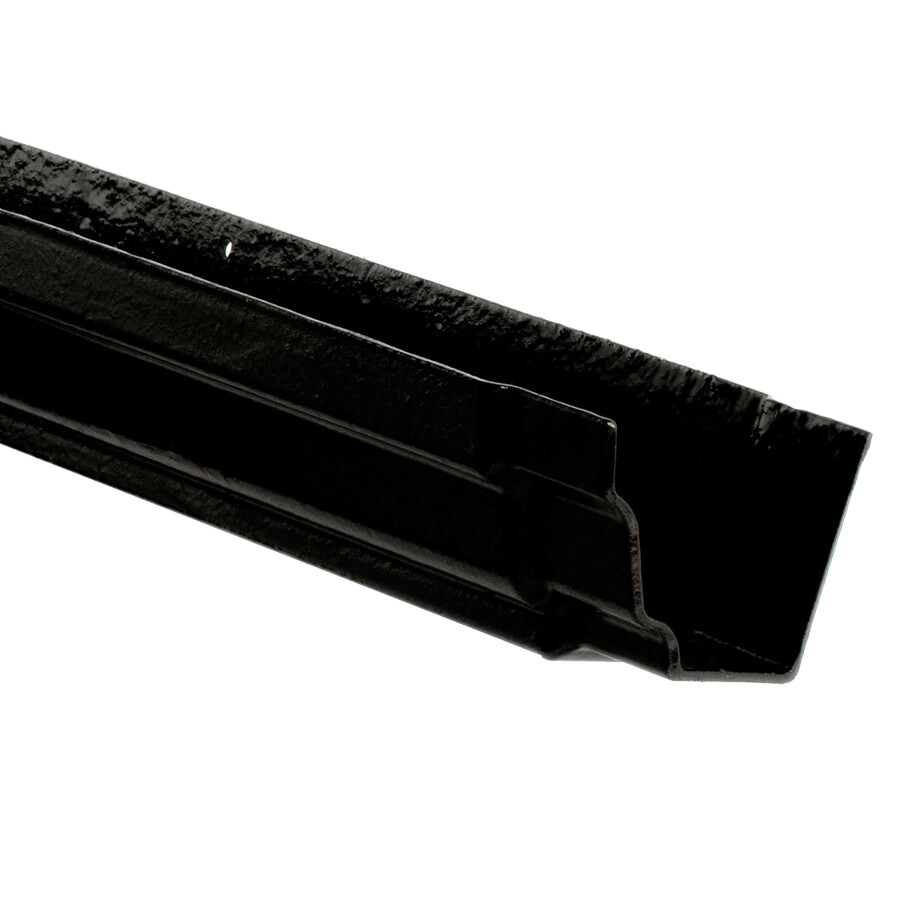

The H16 moulded cast iron gutter profile is a large-shaped gutter which would usually be required on traditional properties which require an increased capacity. However, this stylish moulded cast iron gutter design is suitable for both new build and traditional refurbishment projects involving existing rainwater systems. This large cast iron gutter profile is available in either 5” x 4” or 6” x 4” profile widths and is supplied 1829mm (6′) lengths which have a right-hand internal joint. The H16 Moulded cast iron gutter profile is available in a grey transit primer or the Premier Extra gloss black paint finish.
Our H16 Moulded gutter profile is a big profile of Ogee guttering which has a flat base and a more pronounced shape to the face. Being larger than the common cast iron ogee guttering the two sizes offer a significant flow rate for projects with bigger roof areas or steeper roof pitches. More commonly used on traditional projects this cast iron gutter profile is in the Ogee style but with the large capacity it has something to offer for both conservation and modern projects. The H16 Moulded profile has a right-hand internal joint.
Our cast iron H16 Moulded guttering profile is offered in the following depths:
5″x4″ = 100mm
6″x4″ = 100mm
Our H16 Moulded cast iron gutter profile is available in 2 widths and offers the following flow rates:
5″x4″ = has a 1.99-litre capacity
6″x4″ – has a 2.64-litre capacity
It is important to note that the H16 Moulded profile has a right-hand internal joint. Unlike the common Ogee and Notts Ogee profiles, which have a larger left-hand socket, the H16 Moulded profile has a thinner right-hand internal joint. This means that anything fitting to the left will be internal and anything right external. Should you cut off the socket leaving you with a plain end on both sides you will still require internal fittings but you will need to purchase the union clip to attach them. For further details concerning sockets and handing of items, please click on the ‘Socket Information’ button.
Cast iron guttering, pipes and hopper heads offer unrivalled strength, durability, low operational noise levels, environmental benefits and a lifespan that makes the installation of these products a once-in-a-generation event.
Metal & Glass cast iron rainwater and soil systems are the logical choices for listed properties and conservation areas as the aesthetic appeal of cast iron satisfies all the requirements of heritage architecture.
Our standard range of cast iron gutter profiles includes Plain Half Round, Beaded Half Round, Ogee, Notts Ogee, G46 Moulded, H16 Moulded and Plain Deep Half Round. In addition to these cast iron guttering profiles, our range can be complemented with compatible products from the extensive sand cast rainwater range or alternatively unique bespoke products can be supplied to your design.
Supported by an extensive range of fittings and brackets, the H16 Moulded profile of cast iron guttering offers everything you might need for your project whether traditional or contemporary.
This is a genuine cast iron rainwater system supplied by a well-established UK foundry. Offering significantly more benefits than the plastic cast iron effect, traditional cast iron products are proven to be versatile, durable, and reliable and these sustainable products continue to meet the changing demands of modern industry.
Our Premier Rainwater is a range of traditional cast iron pipes, gutters and fittings available "off the shelf". Included the moulded H16 ogee profile, these are standard products which have stood the test of time. Properly fitted our Premier products will enhance the exterior appearance and add value to any building. Premier Rainwater Ex Stock is available as Premier Grey Primed or Premier Extra (PX) Black gloss. Other colours in the RAL or BS ranges are available ex-stock but lead times will vary. We also offer Premier Coastal which is essential to meet the rigours of a marine environment.
We can also offer made-to-order cast products. They are available within our range but need to be cast or fabricated with timescales agreed upon in advance. They can be ordered in exactly the same way as ex-stock products. They are available in all the same paint options as Premier Ex Stock.
Through our foundry partners at Hargreaves, we can also offer bespoke cast iron gutter, pipe and hopper options. Hargreaves is a working foundry with skilled pattern makers and moulders, specialist fabricators and painters and over a century of iron casting experience at their location in Halifax, Yorkshire.
For help and advice with your cast iron rainwater system speak to one of our knowledgeable team.
