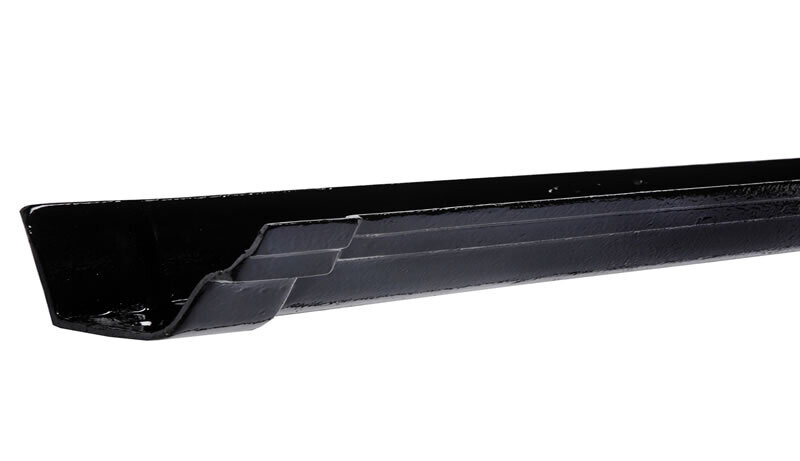

The Notts Ogee is similar in design to the common Ogee profile but offers a larger capacity due to the increased depth. The Notts Ogee gutter is only available in the one 4.5″ (115mm) size and is offered in either a grey primer or gloss black painted finish.
Our Notts Ogee gutter profile is a specific pattern or design of Ogee guttering. It is slightly deeper than the common cast iron ogee guttering and provides an increased flow rate. This traditional cast iron gutter profile is very similar in design to the common Ogee but is only offered in a 4.5” width with a 3” depth. Like the common Ogee profile, the Notts Ogee gutter has a socket on the left-hand side.
Our cast iron Notts Ogee guttering profile is a shallow curve and the profiles depths are:
115mm (4.5") = 75mm
The Notts Ogee cast iron gutter profile is available in a single width:
4.5" - has a 1.23-litre capacity
It is important to note that the socket for the Notts Ogee profile is on the left-hand side. This means that anything fitting to the left will be internal and anything right external. Should you cut off the socket leaving you with a plain end on both sides you will still require internal fittings but you will need to purchase the union clip to attach them. There are no external left-hand fittings so please remember that anything on the left must also have a socket. For further details concerning sockets and handing of items, please click on the 'Socket Information' button.
Cast iron guttering, pipes and hopper heads offer unrivalled strength, durability, low operational noise levels, environmental benefits and a lifespan that makes the installation of these products a once-in-a-generation event.
Metal & Glass cast iron rainwater and soil systems are the logical choices for listed properties and conservation areas as the aesthetic appeal of cast iron satisfies all the requirements of heritage architecture.
Our standard range of cast iron gutter profiles includes Plain Half Round, Beaded Half Round, Ogee, Notts Ogee, G46 Moulded, H16 Moulded and Plain Deep Half Round. In addition to these cast iron guttering profiles, our range can be complemented with compatible products from the extensive sand cast rainwater range or alternatively unique bespoke products can be supplied to your design.

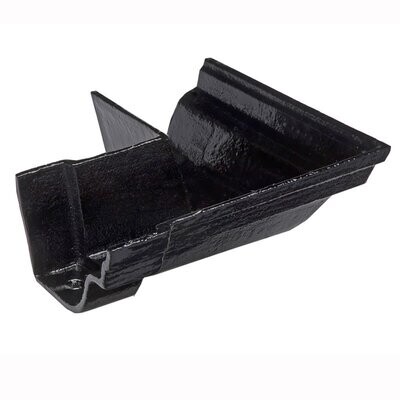

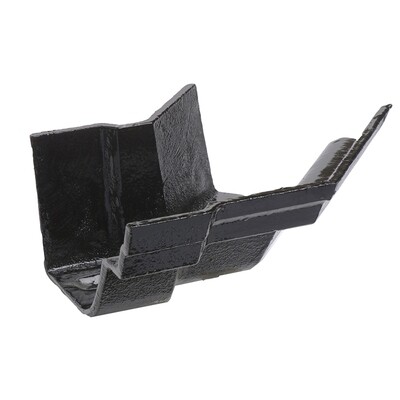

Supported by an extensive range of fittings and brackets, the Notts Ogee profile of cast iron guttering offers everything you might need for your project whether traditional or contemporary.
This is a genuine cast iron rainwater system supplied by a well-established UK foundry. Offering significantly more benefits than the plastic cast iron effect, traditional cast iron products are proven to be versatile, durable, and reliable and these sustainable products continue to meet the changing demands of modern industry.
If you are considering traditional cast iron rainwater or soil products for periods, listed and historic buildings, then we can offer everything you will need at great prices. We can also provide options for creating bespoke and non-standard items and if you are unsure of what you need, our team of experts are on hand to provide advice and guide you through the process.
