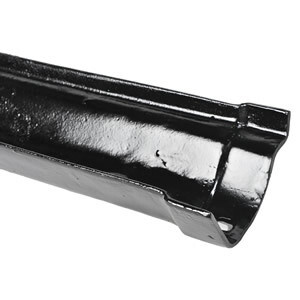

The Common OG (Ogee) profile of cast iron guttering is available in 3 widths and is supplied in either a grey primer or gloss black painted finish. Lengths are supplied in 1829mm (6′) lengths and have a socket one the left-hand side (when facing front) to allow continuous jointing.
The term Ogee is the name given to objects, elements, and curves which are often seen in architecture and buildings. They are occasionally described as serpentine like an extended S and usually refer to bridge or arch structures where the curves point in opposite directions. The name Ogee is often abbreviated to OG.
Our cast iron Ogee guttering profile is a shallow curve and the profiles depths are:
100mm (4") = 54mm
115mm (4.5") = 60mm
125mm (5") = 66mm
Our common ogee cast iron gutter profile is available in 3 widths:
4" - has a 0.41-litre capacity
4.5" - has a 0.60-litre capacity
5" - has a 0.74-litre capacity
It is important to note that the socket for the common Ogee profile is on the left-hand side. This means that anything fitting to the left will be internal and anything right external. Should you cut off the socket leaving you with a plain end on both sides you will still require internal fittings but you will need to purchase the union clip to attach them. There are no external left-hand fittings so please remember that anything on the left must also have a socket. For further details concerning sockets and handing of items, please click on the 'Socket Information' button.
Cast iron guttering, pipes and hopper heads offer unrivalled strength, durability, low operational noise levels, environmental benefits and a lifespan that makes the installation of these products a once-in-a-generation event.
Metal & Glass cast iron rainwater and soil systems are the logical choices for listed properties and conservation areas as the aesthetic appeal of cast iron satisfies all the requirements of heritage architecture.
Our standard range of cast iron gutter profiles includes Plain Half Round, Beaded Half Round, Ogee, Notts Ogee, G46 Moulded, H16 Moulded and Plain Deep Half Round. In addition to these cast iron guttering profiles, our range can be complemented with compatible products from the extensive sand cast rainwater range or alternatively unique bespoke products can be supplied to your design.
Supported by an extensive range of fittings and brackets, the Common Ogee profile of cast iron guttering offers everything you might need for your project whether traditional or contemporary.
This is a genuine cast iron rainwater system supplied by a well-established UK foundry. Offering significantly more benefits than plastic cast iron effect, traditional cast iron products are proven to be versatile, durable, reliable and these sustainable products continue to meet the changing demands of modern industry.
Our Victorian Ogee cast iron gutter is a stylish profile which has a sculpted front. The Ogee cast iron gutter profile was a popular design which was regularly used in the Victorian era. As such, this shaped cast iron gutter profile is often found on traditional and Listed buildings as well as in conservation areas.
The Common Ogee profile of the gutter would usually be jointed using a silicone sealant, bolts, nuts and washers (see our gutter and pipe accessories section). A significant number of Common Ogee gutter installations will be fitted to a fascia board directly through the rear of the gutter profile. Our cast iron Common Ogee has three fixing positions across each 6’ (1820mm) length of gutter. Alternative means of fixing include our Ogee fascia brackets, Ogee top or side fixed rafter brackets or our Ogee rise and fall adjustable brackets.
For help and advice with your cast iron rainwater system speak to one of our knowledgeable team.
