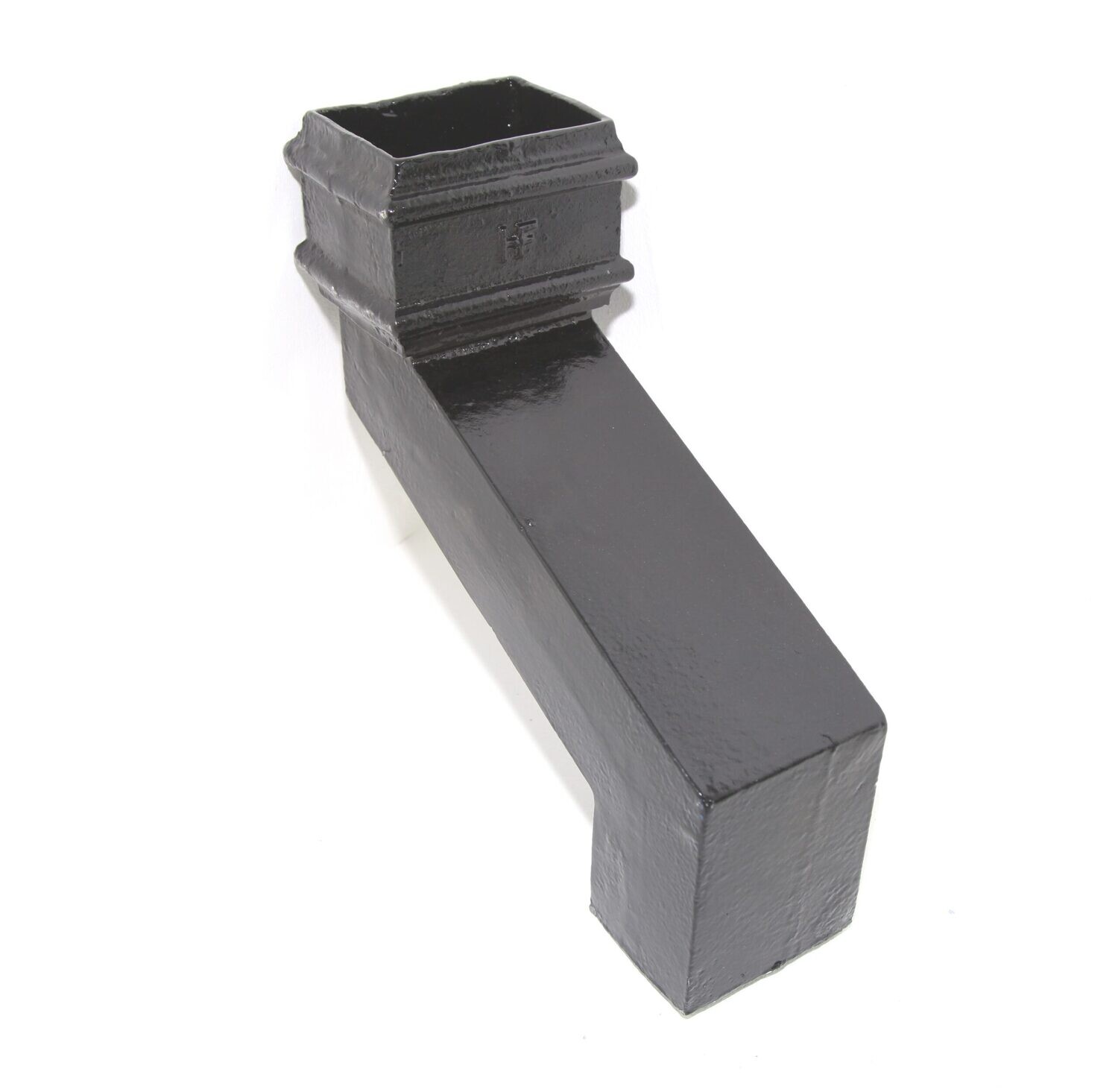

Our cast iron rectangular pipe offset is used to join the pipe to the gutter outlet when then the pipe is not aligned directly below. Our swan neck offsets are available in 10 sizes ranging from 3″ to 24″. With the rectangular pipe, your offset is either front or side-facing. This product selection is for front-facing projections between 305mm (12″) and 610mm (24″).
Our cast iron rectangular rainwater offset (also known as swan necks) is available in 10 sizes ranging from 56mm (2.25″) to 610mm (24″). The size (projection) is taken from centre to centre in a straight line and relates to how far you have to span between the outlet and pipe. Our standard cast iron rectangular front and side-facing offsets are all produced at an angle of 112.5 degrees.
Our cast iron rectangular rainwater pipe is available in four diameters which are 4"x3, 5"x2.75", 5"x4" and 6"x4" and this selection is for front-facing offsets ranging from 12" to 24" projection.
The rectangular rainwater pipe design is used where it is necessary to remove large volumes of water from the roof or where a statement architectural feature is required. Due to the large size of these cast iron downpipes, they are better suited to our wider cast iron gutter profiles. The rectangular cast rainwater pipes are ideal for heritage or listed properties and will offer great benefits to more contemporary projects. The rectangular branch is a plain version and is held in position by the guttering and pipes.
The overall height dimensions of the cast iron rectangular rainwater offset are:
305mm (12") Front Facing 112.5 Degree Offset
100x75mm (4″x3″) = 350mm
125x70mm (5″x2.75″) = 353mm
125x100mm (5″x4″) = 372mm
150x100mm (6″x4″) = 372mm
380mm (15") Front Facing 112.5 Degree Offset
100x75mm (4″x3″) = 382mm
125x70mm (5″x2.75″) = 385mm
125x100mm (5″x4″) = 404mm
150x100mm (6″x4″) = 404mm
457mm (18") Front Facing 112.5 Degree Offset
100x75mm (4″x3″) = 414mm
125x70mm (5″x2.75″) = 417mm
125x100mm (5″x4″) = 434mm
150x100mm (6″x4″) = 434mm
533mm (21") Front Facing 112.5 Degree Offset
100x75mm (4″x3″) = 445mm
125x70mm (5″x2.75″) = 448mm
125x100mm (5″x4″) = 466mm
150x100mm (6″x4″) = 466mm
610mm (24") Front Facing 112.5 Degree Offset
100x75mm (4″x3″) = 477mm
125x70mm (5″x2.75″) = 480mm
125x100mm (5″x4″) = 498mm
150x100mm (6″x4″) = 498mm
Our standard range of cast iron rainwater pipe profiles includes round, square and rectangular. In addition to these cast iron profiles, our range can be complemented with unique bespoke products which can be manufactured to meet your size and design requirements.
Some of our cast iron products such as the cast iron square rainwater pipes are made to order. They are available within the Metal & Glass cast iron range but need to be cast or fabricated with timescales being slightly longer than our off-the-shelf stock products. They can be ordered securely via our website in exactly the same way as ex-stock products. These cast iron made-to-order items are available in both the grey primer and gloss black painted finish.
We can also offer bespoke hoppers to match original designs as well as adapt existing cast iron hoppers by changing outlet sizes and positions.
