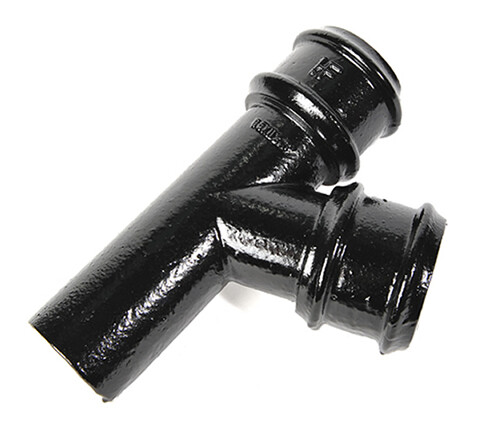

Our cast iron round pipe branches are available in three angle settings which range from 92.5 degrees to 135 degrees. The rainwater branches are supplied with a plain collar on both the main body and the arm section and are held in position by the pipes or guttering.
Our cast iron rainwater branches are supplied with a plain collar on the main body and the arm section and are available in 3 angles. The 92.5 degree is the tightest angle with 135 degree bend providing more of a slope to the profile. The 112.5-degree angle is in the middle of the two.

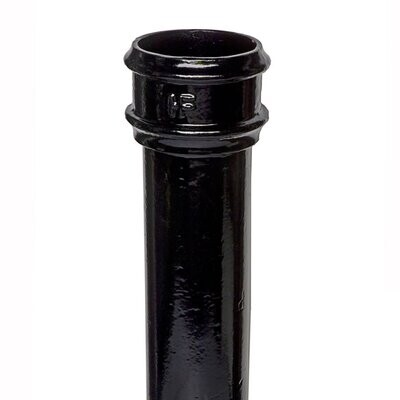

Our cast iron round rainwater pipe is available in four diameters which are 65mm, 75mm, 100mm and 150mm and our loose pipe sockets with spigots enable cost saving through utilisation of pipe offcuts.
Our cast iron rainwater pipes are produced by the centrifugal cast method which offers uniformity of shape and thickness.

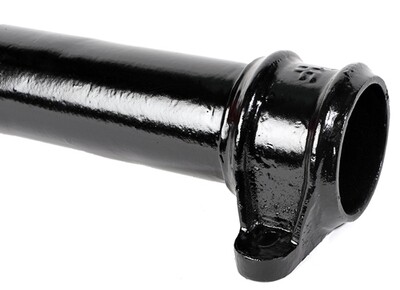

The round rainwater pipe design is the most popular option as it compliments all our cast iron gutter profiles. It is ideal for heritage or listed properties and will offer great benefits to more contemporary projects. This downpipe is the eared version as it has the fixing ears on the collar.
The dimensions of the cast iron rainwater branch are:
92.5 Degree Rainwater Bend
65mm (2.5″) = 134mm drop from top to centre with a tail length of 142mm
75mm (3″) = 280mm drop from top to centre with a tail length of 147mm
100mm (4″) = 330mm drop from top to centre with a tail length of 167mm
150mm (6″) = 375mm drop from top to centre with a tail length of 200mm
112.5 Degree Rainwater Bend
65mm (2.5″) = 120mm drop from top to centre with a tail length of 143mm
75mm (3″) = 130mm drop from top to centre with a tail length of 164mm
100mm (4″) = 140mm drop from top to centre with a tail length of 180mm
150mm (6″) = 385mm drop from top to centre with a tail length of 223mm
135 Degree Rainwater Bend
65mm (2.5″) = 105mm drop from top to centre with a tail length of 146mm
75mm (3″) = 292mm drop from top to centre with a tail length of 167mm
100mm (4″) = 330mm drop from top to centre with a tail length of 225mm
150mm (6″) = 433mm drop from top to centre with a tail length of 293mm
Cast Iron is one of the best choices for rainwater, soil and drain products due to its sustainability, longevity, durability and reliability. It is a cost-effective product that will last the life of a building and beyond and does not contribute to the growing environmental impact caused by the overuse of plastic.
Premier Rainwater is a range of traditional cast iron pipes, gutters and fittings that are available "off the shelf". These are traditional cast iron products which have stood the test of time. Properly fitted Premier products will enhance the exterior appearance of any building. Premier Rainwater is available as Premier Grey Primed or Premier Extra Black gloss.
Our standard range of cast iron rainwater pipe profiles includes round, square and rectangular. In addition to these cast iron profiles, our range can be complemented with unique bespoke products which can be manufactured to meet your size and design requirements.
If you are considering traditional cast iron rainwater or soil products for period, listed and historic buildings, then we can offer everything you will need at great prices. We can also provide options for creating bespoke and non-standard items and if you are unsure of what you need, our team of experts are on hand to provide advice and guide you through the process.
