This gutter bracket is designed to fix your fascia board whilst still offering a rise & fall element to help with uneven or sagging gutters. Manufactured in the UK from 316 stainless steel this fascia rise & fall bracket is produced and sized for cast iron guttering and offers unrivalled strength and durability. Available to fit the 4″, 4.5″ & 5″ plain half-round profile.

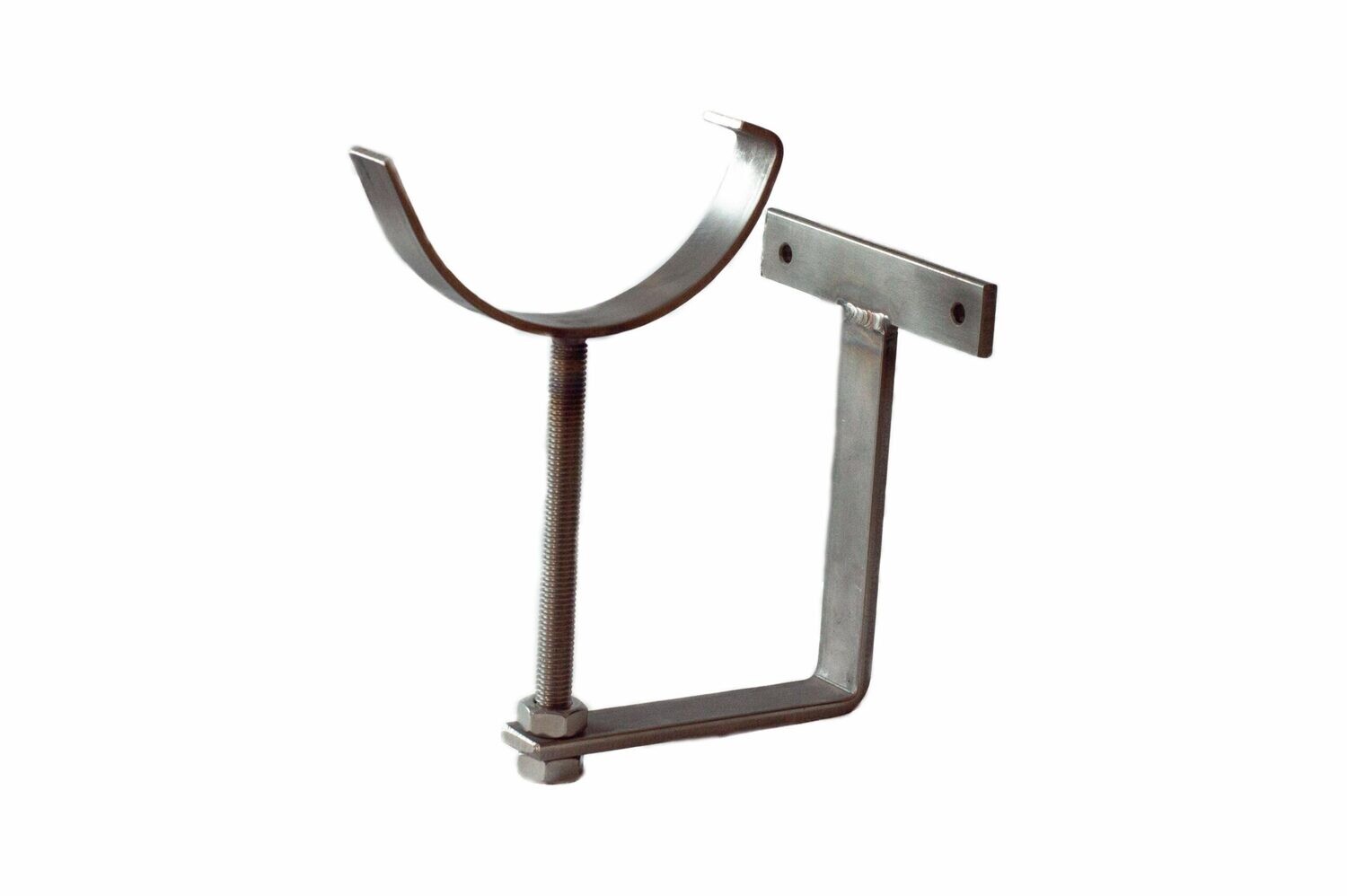

Fascia Rise & Fall Bracket For Half Round Cast Iron Guttering
This gutter bracket is part of our range of metal gutter brackets and this particular type is designed to fix to the fascia whilst still offering a rise & fall element to help with uneven or sagging gutters. Manufactured in the UK from 316 stainless steel this fascia rise & fall bracket is produced and sized for cast iron guttering and offers unrivalled strength and durability. If you are wanting to use these for plastic, zinc, aluminium or cast iron effect gutters, please contact us for confirmation of sizes and speak to your guttering supplier concerning any potential reaction between the materials.
If you are looking to support your guttering for decades to come then this fascia rise & fall bracket is for you. It is designed to fix to the fascia board and supports your rainwater goods using the rise and fall cup. For cast iron guttering, it would be good practice to have a bracket every 900mm (3') or wherever the guttering is sagging.
Available in 3 sizes (4", 4.5" & 5")
The arm is produced from 5mm x 20mm 316 stainless steel with the cup being produced in 3mm x 20mm.
The back bracket projects approximately 100mm from the rear of the bracket to the centre of the hole.The height from the base of the bracket to the fixing holes (drop) is 120mm.The fixing holes are spaced 80mm apart.The rise & fall thread length is approximately 120mm
The cup is also produced from 20mm x 3mm 316 stainless steel and includes a 130mm threaded M10 stud, supplied with two stainless nuts.
This is a quality UK manufactured bracket which is produced from 316 stainless steel material providing unrivaled longevity and excellent strength in all weather. You should use stainless steel fixings with these brackets.
Stainless steel is used because of the corrosion resistance in a wide variety of service environments, usually without additional coatings. In certain circumstances, however, stainless steel components may require a coated (paint) finish so if you are intending to paint these, please ensure that you use the correct primer or your paint will not stick. There are a number of metal paint products available including Hammerite 'Special Metals Primer' which will promote adhesion to stainless steel.
Please note that if you are purchasing for use with other types of guttering such as plastic or aluminium, that the design only has a single return on the cup and would normally rely on the weight of the cast iron to keep the guttering in the cup. The external dimensions of cast iron guttering would usually be slightly wider than plastic or aluminium so if you are going to use these brackets for materials other than cast iron, you may need to secure your guttering to the bracket.
