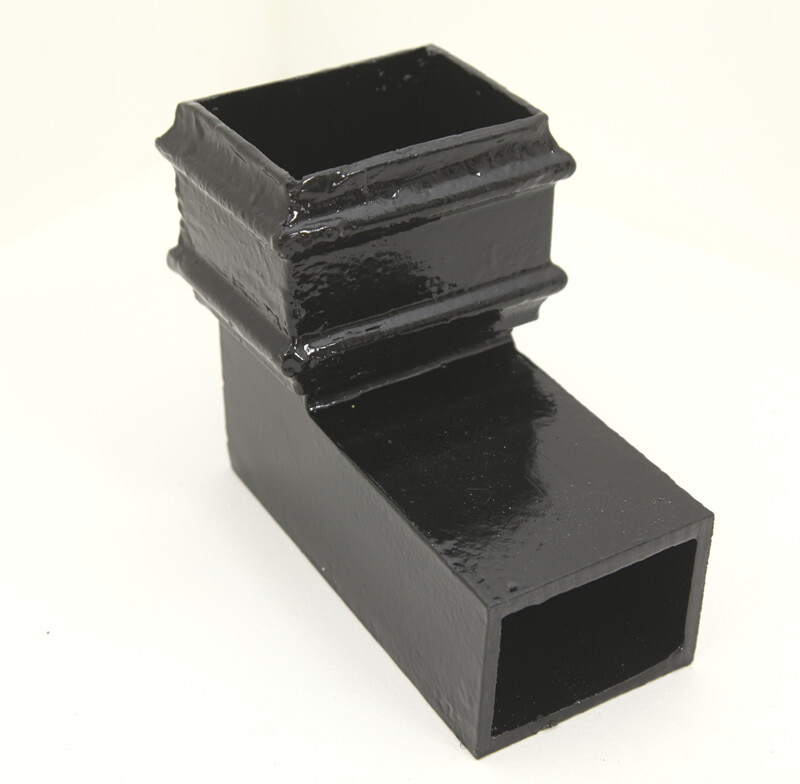

Our cast iron rectangular front-facing pipe bends are available in four sizes with three angle settings which range from 92.5 degrees to 135 degrees. The rainwater bends are supplied with a plain collar and are held in position by the pipes or guttering.

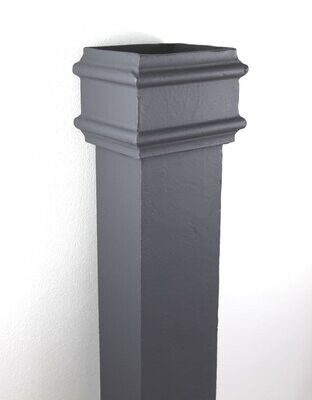

Our cast iron rectangular rainwater pipes are produced to a high standard to ensure both uniformity of shape and thickness.
The rectangular rainwater pipe design is used where it is necessary to remove large volumes of water from the roof or where a statement architectural feature is required. Due to the large size of these cast iron downpipes, they are better suited to our wider cast iron gutter profiles. The rectangular cast rainwater pipes are ideal for heritage or listed properties and will offer great benefits to more contemporary projects. The front-facing bend is a plain version and is held in position by the guttering and pipes.
The dimensions of the cast iron rainwater front-facing bend are:
92.5 Degree Rainwater Front Bend
100x75mm (4″x3") = 138mm drop from top to centre with a tail length of 168mm
125x70mm (5″x2.75") = 138mm drop from top to centre with a tail length of 168mm
125x100mm (5″x4") = 150mm drop from top to centre with a tail length of 180mm
150x100mm (6″x4") = 164mm drop from top to centre with a tail length of 192mm
112.5 Degree Rainwater Front Bend
100x75mm (4″x3") = 128mm drop from top to centre with a tail length of 178mm
125x70mm (5″x2.75") = 128mm drop from top to centre with a tail length of 178mm
125x100mm (5″x4") = 144mm drop from top to centre with a tail length of 198mm
150x100mm (6″x4") = 158mm drop from top to centre with a tail length of 213mm
135 Degree Rainwater Front Bend
100x75mm (4″x3") = 122mm drop from top to centre with a tail length of 190mm
125x70mm (5″x2.75") = 122mm drop from top to centre with a tail length of 190mm
125x100mm (5″x4") = 129mm drop from top to centre with a tail length of 208mm
150x100mm (6″x4") = 128mm drop from top to centre with a tail length of 230mm
Our standard range of cast iron rainwater pipe profiles includes round, square and rectangular. In addition to these cast iron profiles, our range can be complemented with unique bespoke products which can be manufactured to meet your size and design requirements.
Some of our cast iron products such as the cast iron square rainwater pipes are made to order. They are available within the Metal & Glass cast iron range but need to be cast or fabricated with timescales being slightly longer than our off-the-shelf stock products. They can be ordered securely via our website in exactly the same way as ex-stock products. These cast iron made-to-order items are available in both the grey primer and gloss black painted finish.
We can also offer bespoke hoppers to match original designs as well as adapt existing cast iron hoppers by changing outlet sizes and positions.
